Steel Pipes Dimensions – ANSI Schedule 80

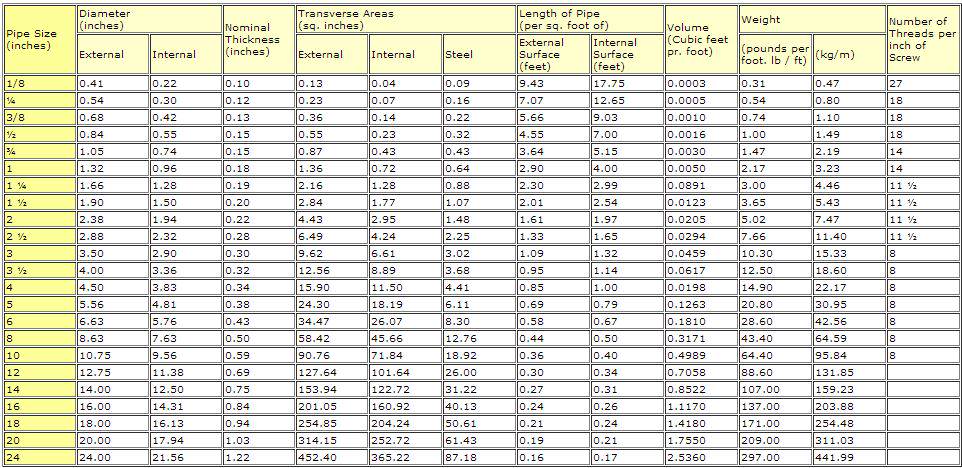

Internal and external diameters, areas, weights, volumes and number of threads for schedule 80 steel pipes
Series: Piping Standards Series | Previous: Standards 35: Steel Pipe Standardization Organizations | Next: Standards 37: Steel Pipes Dimensions – ANSI Schedule 40
